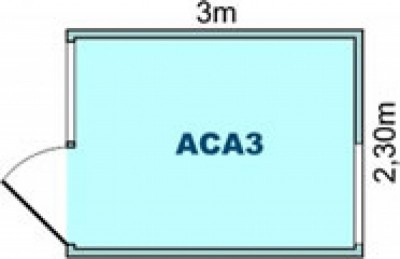

ACA3 Container Warehouse model

Dimensions: 2,30m (breadth) x 3,00 (length) x 2,85m (height) (headroom: 2,50m) Manufactures with galvanized and bended steel sheets, marine plywood floor, supported by steel chassis, steel feet on the ground. Delivered assembled with electrical installation with no internal or external painting.

Including:

• Door: 01 with door latch (800mm x 2150mm)
• Window: 02 projecting windows (700mm x 1000mm)
• Electric: 01power switch, power plug, 01 lamp spot

ACA3 Standard office container

Dimensions: 2,30m(breadth) x 3,00m (lenght) x 2,85m (height) ( headroom 2,50m).
Manufactured with galvanized and bended steel sheets, marine plywood floor, supported by steel chassis, steel feet on the ground. Delivered assembled with electrical installation with no internal or external painting.

Including:

• Door: 01 with door latch (800mm x 2150mm)
• Window: 01 with aluminum frames (1000mm x 1000mm) (beside the door)
• Electric: 01 power switch with power plug, 01 spot for fluorescent lamp (02 x 40w-220V) Support and installation of air conditioning – 220V
• Ceiling thermal insulation with polystyrene with white PVC finish
• Floor covered with paviflex

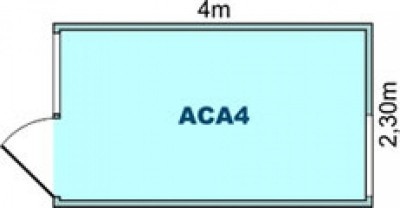

ACA4 Warehouse container module

 Dimensions: 2,30m (breadth) x 4,00m (lenght) x 2,85m (height) (headroom  2,50m).

 Manufactured with galvanized and bended steel sheets, marine plywood floor, supported by steel chassis, steel feet on the ground. Delivered assembled with electrical installation with no internal or external painting.

Including:

• Door: 01 with door latch (800mm x 2150mm)
• Window: 02 projecting windows (700mm x 1000mm)
• Electric: 01power switch, power plug, 02 lamp spot

ACA4 Coated office container

Dimensions: 2,30m (breadth) x 4,00m (lenght) x 2,85m (height) (headroom  2,50m).

Manufactured with galvanized and bended steel sheets, marine plywood floor, supported by steel chassis, steel feet on the ground. Delivered assembled with electrical installation with no internal or external painting.

.
Including:

• Door: 01 with door latch (800mm x 2150mm)
• Window: 01 with aluminum frames (1000mm x 1000mm) (beside the door)
• Electric: 01 power switch with power plug, 01 spot for fluorescent lamp (02 x 40w-220V) Support and installation of air conditioning – 220V
• Ceiling and walls thermal insulation with polystyrene with white PVC finish
• Floor covered with paviflex.

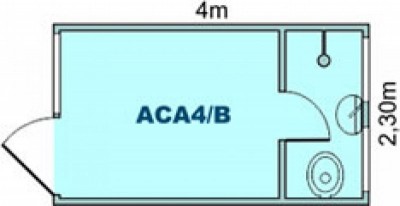

ACA4/B Warehouse container with restroom

Dimensions: 2,30m(breadth) x 4,00m(lenght) x 2,85m/2,50m(height) (headroom 2,50m/2,20m).

Manufactured with galvanized and bended steel sheets, marine plywood floor, supported by steel chassis, steel feet on the ground. Delivered assembled with electrical installation with no internal or external painting.

Including:

Door: 01 with door latch (800mm x 2150mm)

Window: 02 projecting windows (700mm x 1000mm)

Electric: 01power switch, power plug, 02 lamp spot

Bathroom: (Bathroom box with toilet seat and shower spot

ACA4/B Coated Office container with shower

Dimension: 2,30m (breadth) x 4,00m (lenght) x 2,85m(height) (headroom 2,50m).

Manufactured with galvanized and bended steel sheets, marine plywood floor, supported by steel chassis, steel feet on the ground. Delivered assembled with electrical installation with no internal or external painting.

Including:

Door: 01 with door latch (800mm x 2150mm)

Window: 01 with aluminum frames (1000mm x 1000mm) (beside the door)

Electric: 01 power switch with power plug, 01 spot for fluorescent lamp (02 x 40w-220V) Support and installation of air conditioning – 220V

Ceiling and walls thermal insulation with polystyrene with white PVC finish

Floor covered with paviflex.

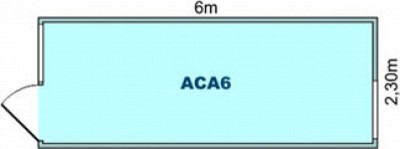

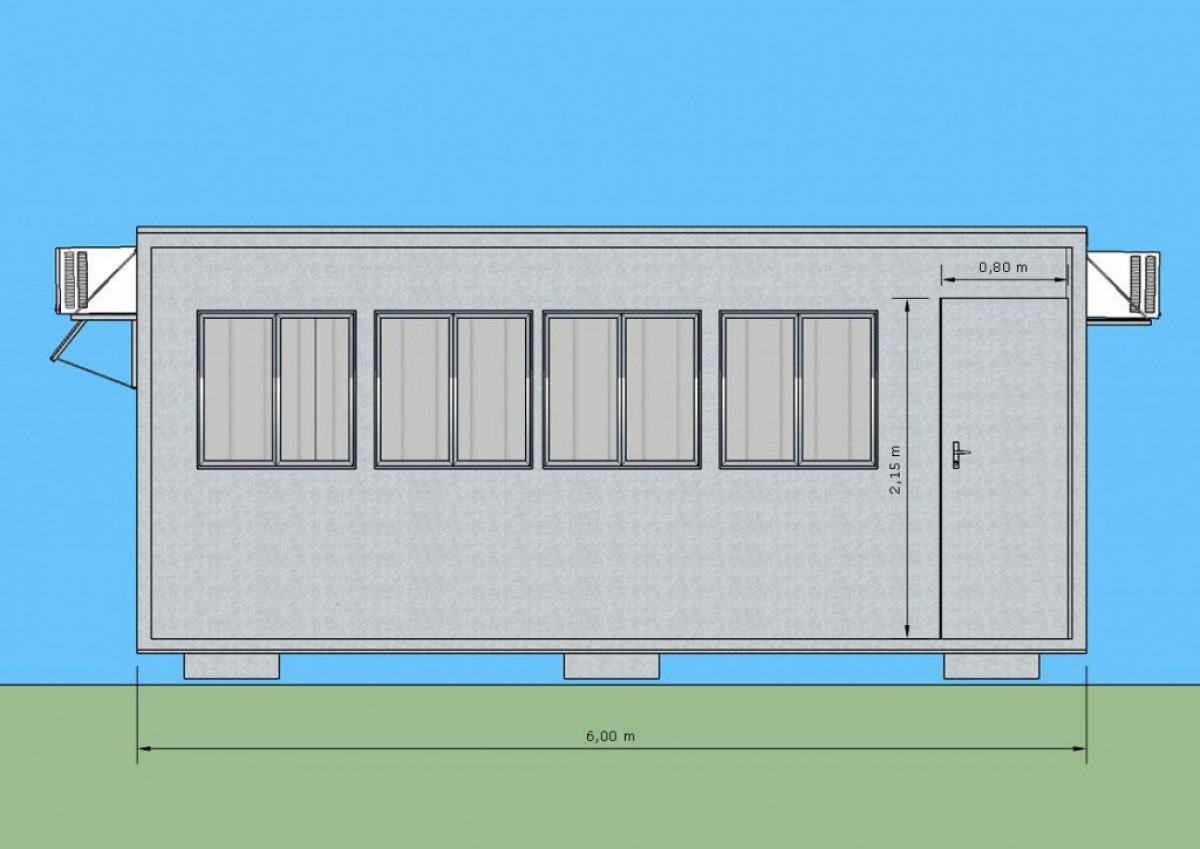

ACA6 Warehouse container module

Dimensions: 2,30m(breadth) x 6,00m(lenght) x 2,85m(height) (headroom 2,50m).

 Manufactured with galvanized and bended steel sheets, marine plywood floor, supported by steel chassis, steel feet on the ground. Delivered assembled with electrical installation with no internal or external painting.

Including:

Door: 01 with door latch (800mm x 2150mm)

Window: 02 projecting windows (700mm x 1000mm)

Electric: 01power switch, power plug, 02 lamp spot

ACA6 Coated Office container module

Dimensions: 2,30m(breadth) x 6,00m(lenght) x 2,85m(height) (headroom 2,50m).

Manufactured with galvanized and bended steel sheets, marine plywood floor, supported by steel chassis, steel feet on the ground. Delivered assembled with electrical installation with no internal or external painting.

Including:

Door: 01 with door latch (800mm x 2150mm)

Window: 01 with aluminum frames (1000mm x 1000mm) (beside the door)

Electric: 01 power switch with power plug, 01 spot for fluorescent lamp (02 x 40w-220V) Support and installation of air conditioning – 220V

Ceiling and walls thermal insulation with polystyrene with white PVC finish

Floor covered with paviflex.

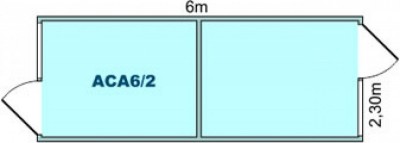

ACA6/2 Office/Warehouse contêiner module
Dimensions: 2,30m(breadth) x 6,00m(lenght) x 2,85m(height) (headroom 2,50m).

Manufactured with galvanized and bended steel sheets, marine plywood floor, supported by steel chassis, steel feet on the ground. Delivered assembled with electrical installation with no internal or external painting.

Including

Door: 02 with door latch (800mm x 2150mm)

Window: 01 with aluminum frames (1000mm x 1000mm) and 01 of steel sheet

Electric: 02 power switch with power plug, 01 spot for fluorescent lamp (02 x 40w-220V) Support and installation of air conditioning – 220V

Ceiling  thermal insulation with polystyrene with white PVC finish (in the office)

Rubber floor

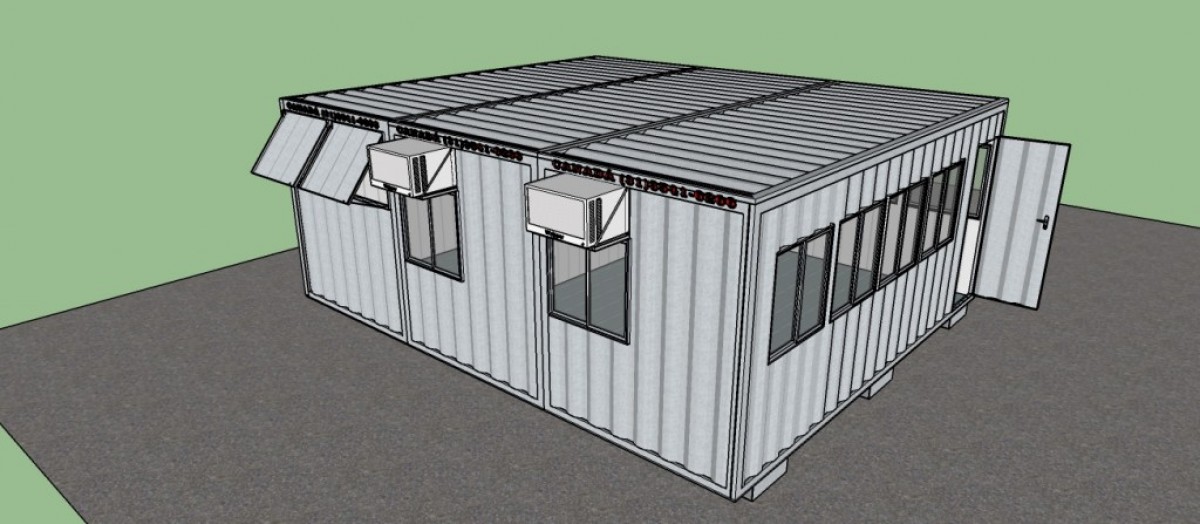

ACA6/B Coupled Office Container - Double

Dimensions: 4,60m(breadth) x 6,00m(lenght) x 2,85m(height) (headroom 2,50m).

Manufactured with galvanized and bended steel sheets, marine plywood floor, supported by steel chassis, steel feet on the ground. Delivered assembled with electrical installation with no internal or external painting.

Including:

Door: 02 with door latch (800mm x 2150mm)

Window: 03 with aluminum frames (1000mm x 1000mm) (beside the door) and 01 with steel sheet (700mm X 1000mm) (in the back)

Electric: 02 power switch with power plug, 04 spot for fluorescent lamp (02 x 40w-220V) Support and 02 installation of air conditioning – 220V

Ceiling thermal insulation with polystyrene with white PVC finish

Floor covered with paviflex.

Restroom: 01 box with toilet seat and 01 lavatory

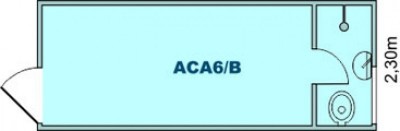

ACA6/B Coated Office with bathroom

Dimensions: 2,30m(breadth) x 6,00m(lenght) x 2,85m(height) (headroom 2,50m).

Manufactured with galvanized and bended steel sheets, marine plywood floor, supported by steel chassis, steel feet on the ground. Delivered assembled with electrical installation with no internal or external painting.

Including:

Door: 01 with door latch (800mm x 2150mm)

Window: 01 with aluminum frames (1000mm x 1000mm) (beside the door) and 01 with steel sheet (700mm X 1000mm) (in the back)

Electric: 02 power switch with power plug, 02 spot for fluorescent lamp (02 x 40w-220V) Support and  installation of air conditioning – 220V

Ceiling and walls thermal insulation with polystyrene with white PVC finish

Floor covered with paviflex.

Restroom: 01 box with toilet seat and 01 lavatory

ACA6/B Warehouse with bathroom module container

Dimensions: 2,30m(breadth) x 6,00m(lenght) x 2,85m/2,50m(height) (headroom 2,50m/2,20m).

Manufactured with galvanized and bended steel sheets, marine plywood floor, supported by steel chassis, steel feet on the ground. Delivered assembled with electrical installation with no internal or external painting.

Including:

Door: 01 with door latch (800mm x 2150mm)

Window: 02 with steel sheets  (700mm x 1000mm) (beside the door and in the back)

Electric: 01 power switch with power plug, 01 spot for lamp

Restroom: 01 box with toilet seat, 01 lavatory and 01 shower spot

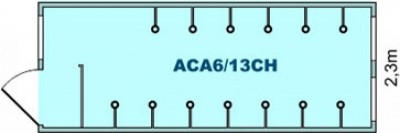

ACA6/13CH Changing room module container

Dimensions: 2,30m(breadth) x 6,00m(lenght) x 2,85m(height) (headroom 2,50m).

Manufactured with galvanized and bended steel sheets, marine plywood floor, supported by steel chassis, steel feet on the ground. Delivered assembled with electrical installation with no internal or external painting.

Including:

Door: 01 with door latch (800mm x 2150mm)

Window: 03 with steel sheets  (700mm x 1000mm) (beside the door and in the back)

Electric: 01 power switch with power plug, 03 spots for lamp and 13 shower spots

Restroom: 01 box with toilet seat, 01 lavatory and 01 shower spot

Floor covered with anti-slip rubber

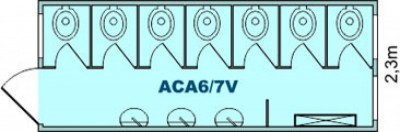

ACA6/7V Restroom

Dimensions: 2,30m(breadth) x 6,00m(lenght) x 2,85m(height) (headroom 2,50m).

Manufactured with galvanized and bended steel sheets, marine plywood floor, supported by steel chassis, steel feet on the ground. Delivered assembled with electrical installation with no internal or external painting.

Including:

Door: 01 with door latch (800mm x 2150mm)

Window: 03 with steel sheets  (700mm x 1000mm) (beside the door and in the back)

Electric: 01 power switch with power plug, 02 spots for lamp

Floor covered with anti-slip rubber

Restroom: 07 box with toilet seat, 03 lavatory and 01 toilet gutter

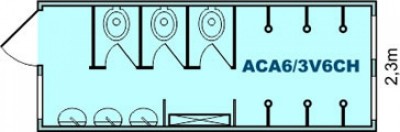

ACA6/3V6CH Restroom Module Container,

Dimensions: 2,30m(breadth) x 6,00m(lenght) x 2,85m(height) (headroom 2,50m).

Manufactured with galvanized and bended steel sheets, marine plywood floor, supported by steel chassis, steel feet on the ground. Delivered assembled with electrical installation with no internal or external painting.

Including:

Door: 01 with door latch (800mm x 2150mm)

Window: 03 with steel sheets  (700mm x 1000mm) (beside the door and in the back)

Electric: 01 power switch with power plug, 03 spots for lamp and 06 shower spots

Floor covered with anti-slip rubber

Restroom: 03 box with toilet seat, 03 lavatory and 01 toilet gutter (1200mm) and 06 shower spots with lateral division and individual doors.

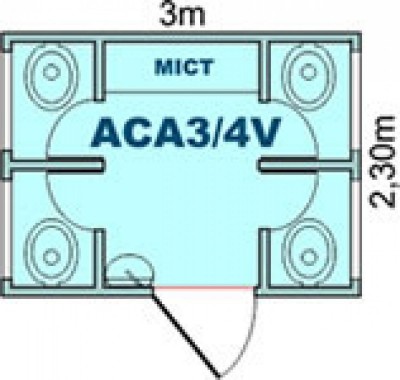

ACA3/4V Restroom Module ContainerSanitário

Dimensions: 2,30m(breadth) x 3,00m(lenght) x 2,85m(height) (headroom 2,50m).

Manufactured with galvanized and bended steel sheets, marine plywood floor, supported by steel chassis, steel feet on the ground. Delivered assembled with electrical installation with no internal or external painting.

Including:

Door: 01 with door latch (800mm x 2150mm)

Window: 04 with steel sheets  (700mm x 1000mm)

Electric: 01 power switch with power plug

Floor covered with anti-slip rubber

Restroom: 04 box with toilet seat, 01 lavatory and 01 toilet gutter.

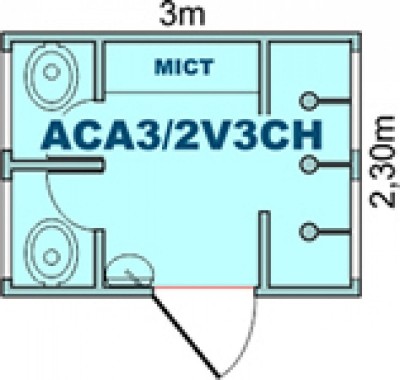

ACA3/2V3CH Restroom Module Container

Dimensions: 2,30m(breadth) x 3,00m(lenght) x 2,85m(height) (headroom 2,50m).

Manufactured with galvanized and bended steel sheets, marine plywood floor, supported by steel chassis, steel feet on the ground. Delivered assembled with electrical installation with no internal or external painting.

Including:

Door: 01 with door latch (800mm x 2150mm)

Window: 04 with steel sheets  (700mm x 1000mm)

Electric: 01 power switch with power plug and 03 shower spots

Floor covered with anti-slip rubber

Restroom: 02 box with toilet seat, 01 lavatory, 01 toilet gutter and 03 shower spots with lateral divisions.

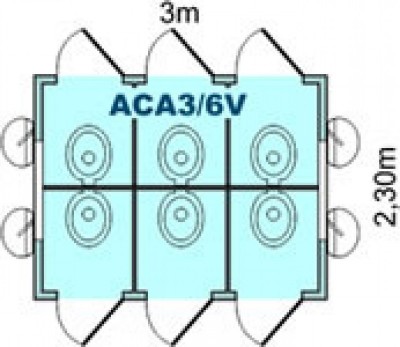

ACA3/6V Restroom Module Container

Dimensions: 2,30m(breadth) x 3,00m(lenght) x 2,85m(height) (headroom 2,50m).

Manufactured with galvanized and bended steel sheets, marine plywood floor, supported by steel chassis, steel feet on the ground. Delivered assembled with electrical installation with no internal or external painting.

Including:

Door: 06 with door latch (800mm x 2150mm)

Window: 02 with steel sheets  (700mm x 1000mm)

Electric: 01 power switch with power plug and 01 lamp spot

Floor covered with anti-slip rubber

Restroom: 06 box with toilet seat, 02 external lavatories.

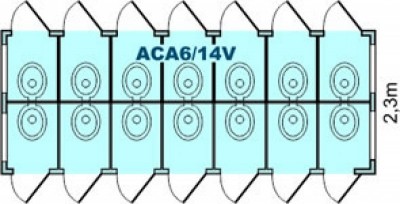

ACA6/14V Restroom Module Container

Dimensions: 2,30m(breadth) x 6,00m(lenght) x 2,85m(height) (headroom 2,50m).

Manufactured with galvanized and bended steel sheets, marine plywood floor, supported by steel chassis, steel feet on the ground. Delivered assembled with electrical installation with no internal or external painting.

Including:

Door: 14 with door latch (800mm x 2150mm)

Window: 04 with steel sheets  (700mm x 1000mm)

Electric: 14 lamp spots

Floor covered with aluminum checkered plate

Restroom: 14 box with toilet seat, 04 external lavatories.
